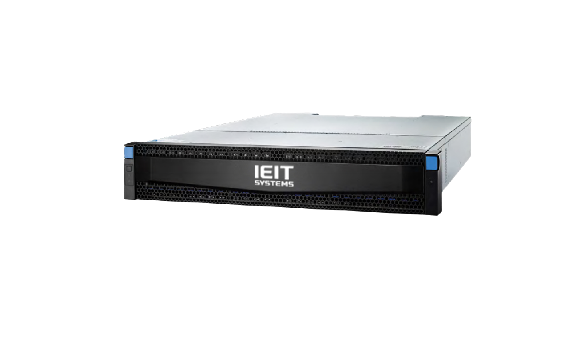

HF5000G5 Storage — IEITSYSTEMS

Key Features

Ultra-high storage performance

With the new NVMe architecture, HF5000G5 reduces its latency by 50% compared with an SAS all-flash storage system.

It supports online horizontal expansion and TB cache, with up to 16 controllers.

A single controller is equipped with 2 data reduction engines, without taking up CPU resources. Compared with the previous hard compression, the performance improves by 30%, and the data reduction ratio can reach 5:1.

Excellent service continuity protection

Adopts industry-leading active-active storage architecture to ensure service continuity.

With the fully modular redundant architecture, main components are free of SPOFs. Gateway-free active-active solutions are adopted to guarantee service continuity and high application availability.

Perfect cloud interconnection capability

Cloud tiering technology supports the interconnection of various clouds, such as AWS, Azure, Alibaba Cloud, and OpenStack.

Features unique hybrid cloud storage capability, providing functions such as cloud cache, cloud disaster recovery, and cloud backup.

Intelligent O&M

Intelligent management software InView supports unified management of all IEIT storage resources.

Heterogeneous virtualization supports centralized management of other external storage resources.

InView builds a cross-platform disaster recovery solution with timing snapshot and multicopy replication, leading to enhanced data security.





Technical Specifications

Product	HF5000G5
Sub-type	MN25	HS25	MS25
Controller	2 to 8
Controller Cabinet	2U25
Processor	Multi-core
Expansion Enclosure	2U25
System I/O Port	6 to 48
Frontend Port Type	16Gb/32Gb FC, 1Gb/10Gb/25Gb/40Gb/100Gb Ethernet
Supported Storage Protocol	FC, iSCSI, NFS, CIFS, FTP
Cache for each controller	128GB/256GB/512GB	128GB/160GB/256GB/512GB	64GB/128GB
Type of Hard Drive	NVMe SSD, SAS SSD	SAS SSD	SAS SSD
Maximum number of disk	1000	1000	1000
Type of System Backend Port	PCIe3.0、SAS3.0	SAS3.0	SAS3.0
RAID Level	RAID 0/1/5/6/10, InRAID 5/6
Boost Resource Efficiency	Intelligent Thin Provisioning (InThin), Intelligent virtualization RAID (InRAID), Intelligent data migration (InMigration), Intelligent online compression (InCompression), Intelligent tiering (InTier), Intelligent volume conversion (Intune), Intelligent heterogeneous virtualization (InVirtualization), Intelligent file service (InFileService), Intelligent multi-tenant (InMulti-tenant)
Data Protection Software	Intelligent snapshot (InSnapShot), Intelligent cloning (InClone), Intelligent backup (InBackup), Intelligent disk mirroring (InVdiskMirror), Intelligent remote replication (InRemoteCopy), Intelligent active-active (InMetro), Intelligent cloud tiering (InCloudTier), Intelligent encryption (InEncryption), Intelligent data destruction (InErase)
Mission-Critical Guarantee	Intelligent quality of service (InQoS), Intelligent automatic cache partition (InAutoPartition)
Virtualization Features	Heterogeneous virtualization: supports 95%+ of the models for uniform management. RAID virtualization: block-level virtualization, system balancing, no hot spots. Virtualization system supports mainstream virtualization technologies, such as IntelliSense plugins (i.e.VAAI, VVOL, VASA, vCenter integration).
