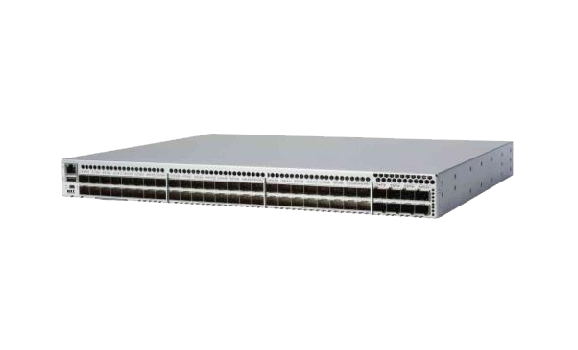

FS8720 | Fiber Switch - IEIT SYSTEMS

Key Features

On-demand scalability

FS8720 features exceptional scalability among 1U 64-port switches. Enterprises can scale from 24 ports to 64 SFP+ ports in an efficient 1U form factor that delivers industry-leading port density and space utilization.

Each SFP+ port supports a Fiber Channel speed of 64/32/16/8 Gbps.

Flash ready

Gen 7 Fiber Channel delivers advanced 64 Gbps performance, full-duplex operation mode, and a total bandwidth of up to 3.5 Tbps to redefine application performance limits and release the full potential of flash storage.

Supports NVMe over Fiber Channel, allowing enterprises to seamlessly integrate Gen 7 Fiber Channel networks and next-generation flash storage systems, without disruptive elimination and replacement.

Autonomous SAN

Adopts Fabric Vision technology to provide a robust analytics architecture that delivers autonomous SAN technology through self-learning, self-optimizing, and self-healing capabilities.

The Fabric Vision technology is a collection of features that leverage comprehensive data collection capabilities with powerful analytics to quickly understand the health and performance of the environment and identify any potential impacts or trending problems.





Technical Specifications

Model	FS8720
Port Quantity	Up to 56 ports. 24 ports for standard configuration. Ports can be expanded at an increment of 8 ports
Port Performance	A port speed of 64/32/16/8 Gbps (auto-negotiation) 57.8 Gbps, 28.05 Gbps, 14.025 Gbps, full duplex; 10.53 Gbps, full duplex; 8.5 Gbps, full duplex
Port Type	E_Port, F_Port, D_Port, EX_Port, N_Port Access gateway mode: F_Port and NPIV N_Port
Total Bandwidth	Up to 3.584 Tbps, end-to-end full duplex
System Latency	Fabric latency: ≤ 460 ns (including FEC)
Maximum Frame Size	2,112-byte payload
Frame Buffer	24K per ASIC
Scalability	Full-fabric architecture with a maximum of 239 switches
ISL Trunking	Up to eight 64 Gbps ports per ISL trunk, with a speed of up to 512 Gbps Uses Dynamic Path Selection (DPS) to implement switch-based load balancing across ISLs.
Management Software	HTTP; SNMP v1/v3 (FE MIB, FC Management MIB); SSH; auditing; Syslog; NTP v3; IEIT advanced Web-based tool; IEIT SANnav Management Portal and SANnav Global View; EZSwitchSetup; Command-Line Interface (CLI); SMI-S compliant; REST API; administrative domains; trial licenses for plug-in capabilities
Management Port	GbE port (RJ-45), serial console port (mini-USB)
Fabric Architecture Service	Fabric Vision; Monitoring and _____________alerting Policy Suite (MAPS); Flow Vision; IEIT Adaptive Network (QoS); Fabric Performance Impact (FPI) monitoring; Slow Drain Device Quarantine (SDDQ); IEIT Advanced Zoning (Default Zoning, Port /WWW Zoning, Broadcast Zoning, Peer Zoning, Target-Driven Zoning); Dynamic Fabric Fabric Architecture Service Provisioning (DFP); Dynamic Path Selection (DPS); IEIT Extended Fabrics; Enhanced BB Credit Recovery; FDMI; Frame Redirection; Frame-based Trunking; FSPF; Integrated Routing; IPoFC; IEIT ISL Trunking; Management Server; NPIV; Time Server; Registered State Change Notification (RSCN); Reliable Commit Service (RCS); Simple Name Server (SNS); Virtual Fabrics (Logical Switch, Logical Fabric); Read Diagnostic Parameter (RDP)
Power Supply	2 hot-swap redundant PSUs, 90 VAC to 264 VAC, with a maximum input current of 4.5 A
Fan	Integrated system cooling fans, front-to-back or back-to-front airflow
Power Consumption	58 W without SFP+ modules; 264 W with 58 × 32 Gbps port (full configuration)
Dimensions (W × H × D)	1U, 440 × 43.9 × 355.6 mm (17.32 × 1.73 × 14 in.)
Weight	7.17 kg (15.81 lbs), without SFP+ modules
