HF2000G7
HF2000G7

HF2000G7

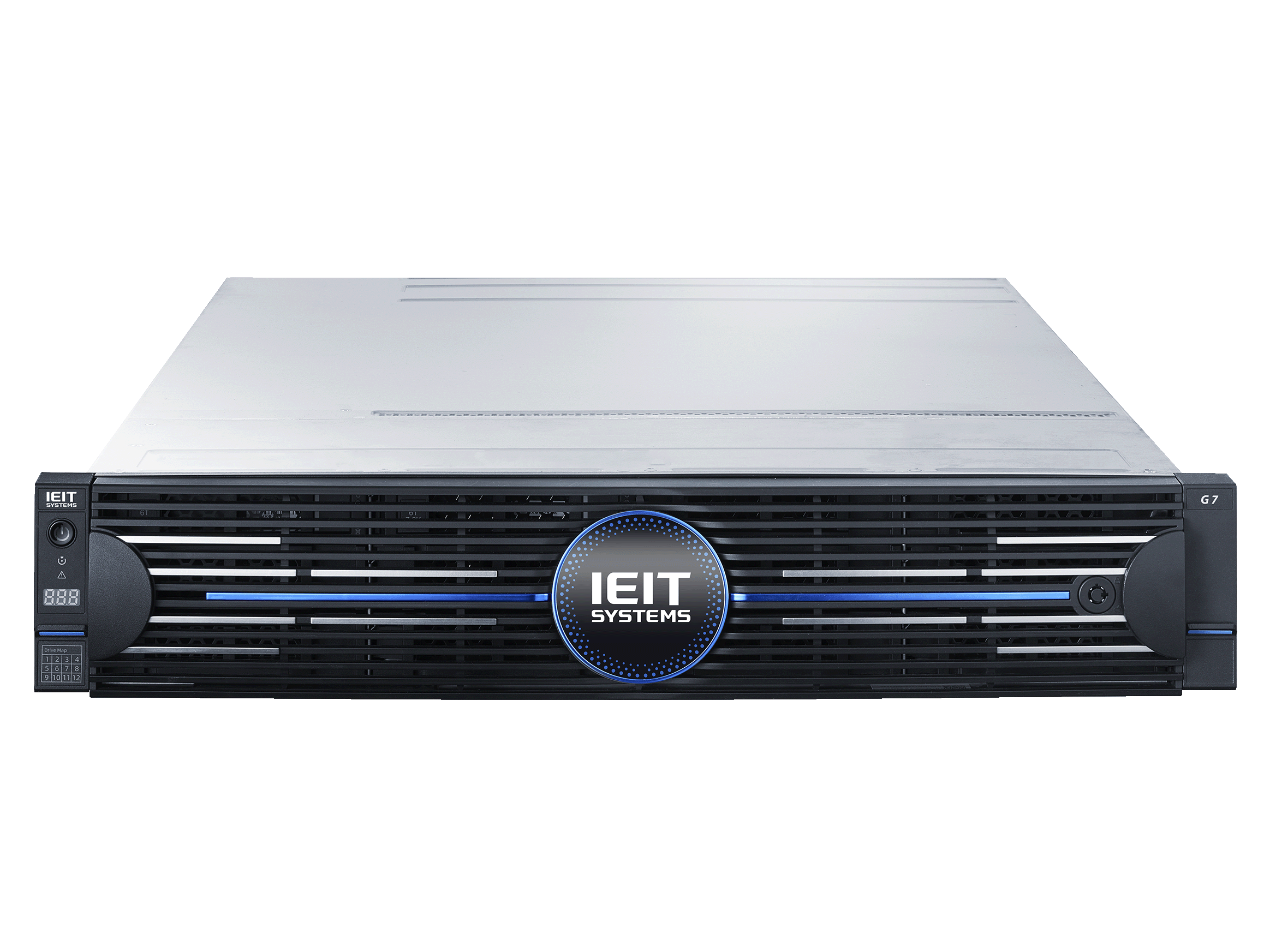

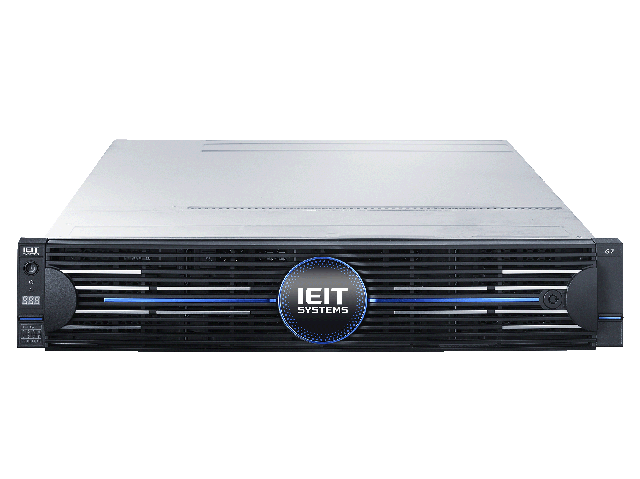

HF2000G7 Storage Platform is an entry-level centralized hybrid flash storage designed for enterprise, healthcare, and educational application environments. It features flexible and rich software capabilities to enhance data read and write efficiency and continuity. The platform supports various network environments including IP-SAN, FC-SAN, and RoCE, offering easy-to-use storage operation and management. All of above makes HF2000G7 Storage Platform fully meet the data storage needs of small and medium-sized databases, office OA systems, video storage, disaster recovery, and backup scenarios.

Key Features
Yuanpan Architecture

Yuanpan Architecture

1. The industry-leading Active-Active storage architecture is adopted to achieve load balancing between controllers, eliminate controller performance bottleneck, and improve system performance. The storage system supports the configuration of volumes with or without ownership. The volume without ownership is combined with self-developed multi-path software to achieve load balancing of multiple controllers and better system performance.

2. The system adopts full redundancy architecture and modular design, the design of storage reduces cable connections,with all core components being fully redundant to eliminate single point of failure and achieve high availability of the storage system.The controller, hard drive, BBU battery, power module, and host interface card of the storage system all support Hot-Swap .

3. The system supports 2U12 and 2U25 specification controller enclosures, flexible combination of SAS SSD, SAS HDD and other hard disks, to provide higher performance and larger capacity data storage experience. The system supports 2U12, 2U25 and 3U48 specification disk enclosures, which can be cascaded vertically in multiple levels as required to flexibly expand storage space and reduce investment costs. The system supports the simultaneous use of  IP-SAN, FC-SAN, RoCE and other protocols. A set of storage supports multiple application platforms, and the system architecture is simpler to work.

Powerful Performance

Powerful Performance

1. Based on a new hardware platform design, the processor, motherboard, media, IO cards, etc. all support PCIE 4.0 protocol. The CPU is equipped with an NTB module to increase the image bandwidth between controllers to 128GB, providing higher data read and write capabilities

2. Two controllers support 64-512GB physical cache, combined with iTurbo7.0's intelligent IO sensing algorithm and intelligent cache partitioning function, to improve cache hit rate, accelerate hotspot data read and write capabilities, reduce IO bottlenecks, and enhance system throughput and concurrent processing capabilities

3. Supports intelligent cache acceleration: Places frequently used data on SSDs for fast access. Supports intelligent QoS, enabling upper/lower limit and burst control for IOPS, bandwidth, and latency, rationally allocating storage resources and ensuring quality of service for critical businesses.

4. Employs multi-path intelligent distribution design: Reduces data forwarding between controllers and shortens IO transmission paths, improving processing efficiency. RoCE interconnection between controllers utilizes the RDMA communication mechanism to reduce latency for inter-controller message or data transmission. Uses a resource pool lock-free design to reduce lock conflicts during resource requests across multiple cores, improving CPU core operating efficiency and performance.


Stable and reliable

Stable and reliable

1. The system can be configured with a 1+1 redundant platinum power module, supporting two power supply modes: current sharing redundancy and primary/backup redundancy, which are more energy-efficient. Paired with a 15.2WH large capacity BBU battery, it supports two consecutive storage power failure protections, ensuring that cache data can be temporarily stored on the system disk in case of power failure, ensuring that cache data is not lost. It supports quick startup within 10 minutes after restoring power supply after one power failure, and supports no system restart within 2 seconds of power outage

2. Intelligent distributed RAID technology, redundant data blocks can be quickly restored, data blocks and hot backup blocks are distributed on all hard disks. After a bad disk appears, all hard disks participate in reconstruction, and the data reconstruction time is shortened with reducing the risk of RAID failure and enhancing  system  reliability.

3. The system supports intelligent local replication, including intelligent cloning, SAN and NAS intelligent snapshots, and intelligent backup, which can meet the needs of application testing, development, analysis, backup, and effectively save storage space and reduce investment costs

4. The system supports intelligent disaster recovery replication, providing three disaster recovery replication technologies: synchronous, asynchronous, and asynchronous cycles. It can optimize IP links by adjusting the number of windows and virtual links through AI algorithms to improve performance under extreme unstable links, meet customers' different RTO and RPO requirements, and protect business continuity

The system supports intelligent data destruction, achieving one click intelligent destruction of data through DoD standard mode and custom mode, ensuring the security of user confidential data

Intelligent and Efficient

Intelligent and Efficient

1. infinistor® Intelligent Management Platform: The infinistor® management platform is intelligent management software for data centers, unifying the management of various devices like storage, switches, hosts, and virtual machines. Using big data and AI technologies, it builds an intelligent O&M management platform, supporting automated storage platform deployment, asset status monitoring, asset capacity forecasting, storage performance optimization, remote asset inspection, fault diagnosis, storage disk prediction, asset management, storage "3-data-center" disaster recovery, etc., enabling intelligent operations. Provides scheduled intensive snapshot protection, supports multi-copy replication, easily building cross-device disaster recovery, adding an extra layer of data security.

2. Intelligent Heterogeneous Virtualization: Leverages heterogeneous virtualization functionality to take over 95% of storage models in the industry, eliminating platform differences and enabling storage reuse. Existing storage systems can utilize this system's advanced features like intelligent online compression, intelligent thin provisioning, intelligent online deduplication, etc., improving capacity utilization in the storage pool. Enhances data mobility, eliminates data silos, and enables unified resource management, significantly reducing management complexity and lowering customer TCO.

3. Intelligent Thin Provisioning: Configures full-capacity license thin provisioning, resources are allocated on-demand with thin provisioning. Adjustable thin provisioning granularity (32k, 64k, 128k, 256k), greatly improving storage resource utilization. Single volume supports up to 512TB;future expansion does not require additional licenses, reducing customer TCO.

4. Intelligent Volume Mirroring: Creates a mirror for volumes mapped to hosts, keeping two identical copies of data in two different storage pools. If any copy is damaged, it provides uninterrupted application IO access.

5. Intelligent Multi-Tenancy: Isolates applications and services between different tenants through virtualization, database isolation, and other technologies, protecting their privacy and security.

6. Data Consistency: End-to-end support from host port to disk for hardware-based, industry-standard T10-PI (Protection Information) data consistency checking, comprehensively ensuring data consistency and avoiding data loss caused by media corruption.

Technical Specifications

Product Model

HF2000G7

Control Enclosure

HF2000G7-MS12 (2U12)

HF2000G7-MS25 (2U25)

Disk Enclosure

JBOD: 2U12/2U25/3U48 , SAS  protocol

RAID Rank

InRAID 5/6

CPU

Multi-core CPUs (PCIE4.0)

System Cache (dual-control)

64GB-512GB

Host Interface Card (dual-control)

8

Front-end Port Type

16Gb/32Gb/64Gb FC,1Gb/10Gb/25Gb/100Gb Ethernet, 25Gb/100Gb RoCE

Hot-Swap Modules

Controller, disk, BBU, power supply, FC card, SAS card, RoCE card

DRAM Cache Protection

Supports continuous 2 times BBU power failure protection, and ensure that business operations remain uninterrupted within 2~5 second power interruption

Resource Efficiency Improved

InThin, InRAID, InTune, InVirtualization, InManagement

Data Protection Software

InSnapshot, InClone, InBackup, InRemoteCopy, InErase

Critical Business Support

InQoS, InAutoPartition

Dimensions (W*D*H mm,

D is the length loaded  into the rack)

447.00*767.15*87.00

(17.60 × 30.20 × 3.43 in.)

447.00*741.30*87.00

(17.60 × 29.19 × 3.43 in.)

Weight (without hard disk, kg/lbs)

31/68.34

29.2/64.37

Max Power of the Power Supply

800W

Input Voltage of the Power Supply

AC: AC220V or AC110V double fire line (180-264V AC, 10A,50-60Hz, IEC60320-C14)

DC: DC240V (180-320V DC, IEC60320-C14)

Storage Temperature

-40℃~70℃ (-40°F to 158°F) (excluding BBU and HDD in the whole machine),0°C to 70°C (32°F to 158°F) is recommended
