FS8900

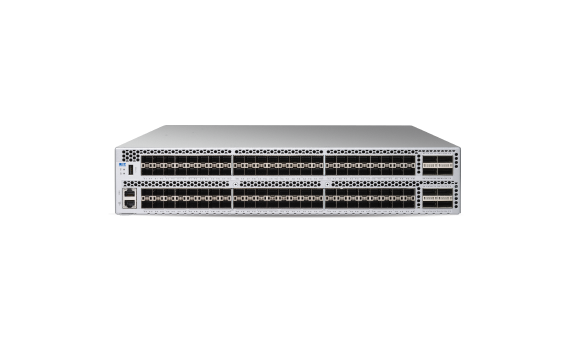

FS8900 FC storage switch is built to provide flexibility, scalability, and ease of use. By leveraging 96 SFP+ ports and 8 QSFP ports, enterprises can expand an efficient 2U switch from 48 ports to 128 ports. In addition, the simplified deployment process and point-and-click user interface make FS8900 easy to use.


Key Features
Flexible scalability to adapt to various businesses

Features high-density 128-port 32 Gbps Gen 6 Fiber Channel to adapt to growing storage needs and demanding workloads.

With 48 to 128 ports, the switch offers pay-as-you-grow scalability and flexibility.


Excellent service continuity protection

Optimizes performance and enhances reliability with advanced monitoring for NVMe.

Simplifies end-to-end management of large-scale environments.

Provides proactive, interference-free, real-time monitoring and ___alerts for storage I/O health and performance with integrated network sensors.

Capable of monitoring and optimizing VM performance, and identifying VM anomalies.

Supports automatic discovery and recovery from network errors to improve device resiliency.

Simplifies management and solves problems quickly with the Fabric Vision technology.

Simplifies troubleshooting with real-time and historical visibility.


Ease of deployment and management

The FS8900 series switch is easy to deploy and manage and can be easily integrated with new and existing IT environments.

Enterprises can expand their storage networks as needed without affecting ongoing services.


Technical Specifications

Model

FS8900

Hardware Feature

48 to 128 ports

96 SFP+ ports capable of operating at 4/8/16/32 Gbps Fiber Channel auto-negotiation speeds; 8 QSFP ports capable of operating at 4×32/4×16/4×8/4×4 Gbps Fiber Channel speeds.

Offers a basic configuration of 48 ports, two 24-port SFP+ Ports on Demand (PoD), and one 32-port QSFP PoD. The switch has a total of eight 32 Gbps QSPF ports.

Supports E_Port, F_Port, D_Port, and EX_Port types

Performance Feature

Fiber Channel: 4.25 Gbps wire speed, full duplex; 8.5 Gbps wire speed, full duplex; 14.025 Gbps wire speed, full duplex; 28.05 Gbps wire speed, full duplex; port rate of 4/8/16/32 Gbps (auto-negotiation). The QSFP ports are capable of auto-negotiating to 4 × 32 Gbps, 4 × 16 Gbps, 4 × 8 Gbps, and 4 × 4 Gbps speeds.

ISL Trunking: Frame-based trunking with up to eight 32 Gbps connections between a pair of switches combined to form a single logical ISL with a speed of up to 256 Gbps (512 Gbps full duplex) per ISL trunk. Exchange-based load balancing across ISLs with DPS included in Fabric OS. On the QSFP ports, 256 Gbps trunks are supported by trunking 2 × (4 × 32 Gbps) QSFP ports.

Total bandwidth: 4 Tbps

Supported Management Software

HTTP, SNMP v1/v3 (FE MIB、FC Management MIB), SSH

Auditing, Syslog

NTP v3

Advanced Web Tools

Network Advisor SAN Enterprise or Network Advisor SAN

Professional/Professional Plus

Command-Line Interface (CLI)

SMI-S compliant

Administrative domains

Trial licenses for add-on capabilities

Management Access

10/100/1,000 Mbps Ethernet (RJ-45) port, implementing in-band management via Fiber Channel, 1 serial port

(RJ-45), and 1 USB port

Dimensions
(W × H × D)

440 × 86.7 × 609.6 mm (17.32 × 3.41 × 24 in.)

Weight:

21.31 kg (47 lbs) with two power supply FRUs and 3 fan connectors, without transceivers

Power Supply

2 power supply FRUs with integrated PSU, voltage range of 90 VAC to 264 VAC (applicable for AC 47 Hz to 63 Hz)

Fan

3 fan RFUs

AC Power Consumption

Maximum 942 W with all 128 ports operating at 32 Gbps (96 ports populated with 32 Gbps SWL optical module and 8 QSFP ports populated with 4×32 Gbps SWL optical module)

49 W for empty chassis with no optical module configured
